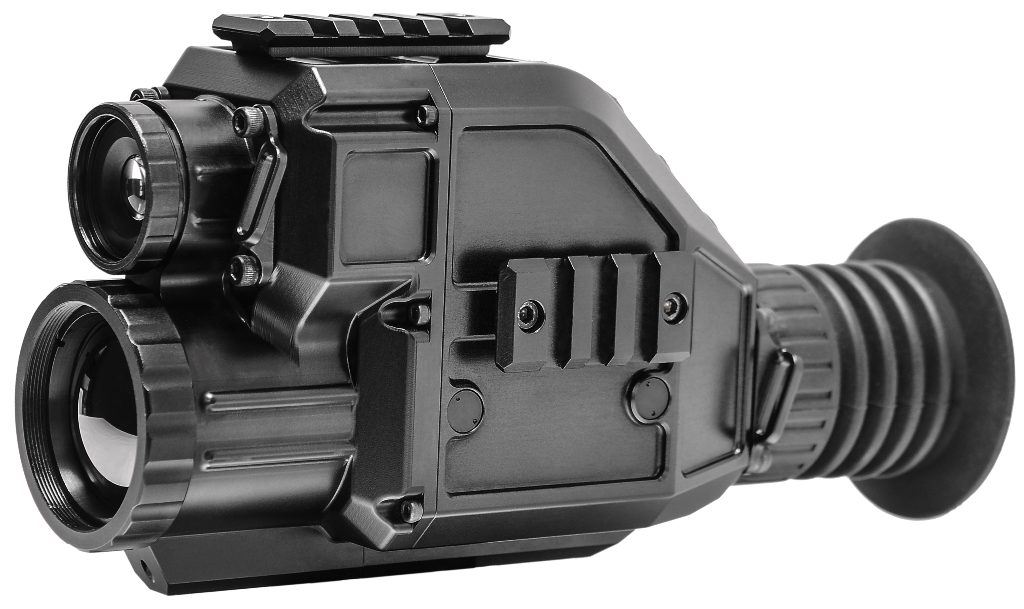

GSCI QUADRO-S Multi Channel Fusion System

Regular price
$500.00
Unit price
per
Shipping calculated at checkout.

PREMIUM PRODUCTS

FREE EXPEDITED SHIPPING OVER $199

ELITE CUSTOMER SERVICE


The QUADRO-S is the augmented vision multi-purpose system for tactical surveillance, observation, as well as aiming and engagement at short- and medium-range distances. Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness. The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance.

 READ CAREFULLY: All GSCI products are made to order, with a lead time of 8-10 weeks unless clarified in advance.

Upon ordering this product, a down payment of $500 CAD is required to generate the order. The balance can then be paid via ACH, Wire Transfer or E-Transfer prior to the build process commencing.

We will email you once the order is in to arrange everything and keep you up to date as your premium optic is being built and shipped.

These units are made in Canada and are non-ITAR, therefore eligible for orders from our clients and partners in the U.S.A. and beyond (Note international purchasers are responsible for customs clearance fees, and all purchasers are responsible for any additional shipping insurance requested.)

SPEC SHEET: QUADRO-S

Dare To Compare: GSCI Advantage

KEY FEATURES

¨ 100% Target Detection Capability

¨ Compact and Versatile

¨ Multi-Mode 24/7 Operation

¨ High Situational Awareness

¨ Auto-NUC: No Calibration Needed, no shutter reset 'click' every few minutes, only premium Canadian technology

¨ Universal Power Solution



MAIN APPLICATIONS



¨ Defence

¨ Security

¨ Border Patrol

¨ Special Forces

¨ Surveillance

¨ Reconnaissance





Face Recognition Technology Ready.

 The QUADRO lineup is designed utilizing GSCI’s patented technology that produces and displays real-time, delay free fusion image that superimposes both spectral ranges covered by its sensors. Besides a number of unique features, this device combines consequential technologies to produce an image allowing for facial recognition in low light or night conditions. The data recorded can be used for enhanced real-time biometrics and post mission forensic analysis for covert nighttime operations. Using this type of technology for recognition at nighttime has revolutionized warfare as it has proven extremely beneficial for informing a soldier that the individual is someone of interest and reducing risk of misidentification.

Fused images can be used in combination with biometric face databases/watch lists that only contain visible face imagery. The fusion technology allows taking advantage of both technologies and combining thermal and visible imagery to jointly preserve the shape of the entire face and appearance of the local identifying details.

Detecting objects that were difficult, or impossible, to see using current state-of-the-art thermal cameras was the main objective behind the design of the QUADRO systems, and all the functions can be done with a simple press of a button.



Additional Features such as Digital Edge Detection and Digital Detail Enhancement make Face Recognition even more effective






OPTICAL PARAMETERS

Optical Magnification

1.4X

Field of View

17.7°x13.3°

Focusing Range

0.5m .. Infinity

Eyepiece

Single

Diopter Adjustment Range

-6 .. +4

Eyerelief

Min. 50mm

SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES

Shot-Initiated FOV Feature (SIF)

Optional: Built-In Adjustable Shock Sensor

Digital Passive Stadiametric Rangefinder (SRF)

Yes

Digital Detail Enhancement Feature (DDE)

Yes

Digital Edge Detection Feature (DED)

Yes

Wide Dynamic Range Feature (WDR)

Yes

Stow Safety Feature (SSF)

Yes

Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display)

Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope

Integrated Compass

Optional

Pitch / Roll / Azimuth Indications

Optional

Power Saving Mode

Yes

Real-Time Date-Time Stamp

Yes: Simplified, Extended, DTG Formats

Digital Video Recorder with Real-Time Stamp

Optional: Comes with Removable 32GB microSD Card

Electronic Reticles

Optional: 8+8 Patterns, Easy Zeroing / Calibration

Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m)

1660m / 2250m

Hand-Held Configuration

Yes

Conversion to Clip-On (In-Line) Sight

Yes

Conversion to Standalone (Direct-View) Sight

Yes

Tripod-Mountable

Yes

User Profiles (Configurable)

Yes: 8

Automatic/Manual Pixel Masking

Yes

Reset to Factory Defaults

Yes

External Video Feed Protection

Yes

Automatic Power Down Control

User-Configurable: 10 .. 60 minutes of inactivity

THERMAL (LWIR)CHANNEL

FPA Type

Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

FPA Resolution and Pitch

640x480, 17μm

FPA Sensitivity (NETD)

<50mK

FPA Refresh Rate

50Hz

Digital Zoom

1X, 2X, 4X

Imaging Modes

Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes

DAY/NIGHT (VNIR) CHANNEL

Sensor Type

High-Performance CCD

Sensor Size

1/3”

Resolution

800x600

Sensitivity

Up to 0.1Lux

Night Boost Mode

Yes

VNIR Modes

Day/Night






DISPLAY

Internal Display

Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600

Internal Display Contrast

>10000:1

IMAGE FUSION

Type

Real-time, Electronic

Fused Channels

LWIR + VNIR

Parallax Compensation

Electronic, Adjustable

Heat Signature Opacity Range

User Adjustable: 0% .. 100%

ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES

Accepted Batteries

4 (Four) AA: Lithium Recommended

Universal Port

Video-Out, Remote Control and External Power (4VDC .. 15VDC)

Video Output Signal

CVBS 1Vpp @ 75 Ohm

Battery Life on 4x AA

Up to 7 Hours

Environmental Protection

Min. IP67, Nitrogen-Purged Housing

Dimensions

170x91x70mm

Weight

750 grams

Operating Temperature

-40°C .. +50°C

Storage Temperature

-55°C .. +65°C

Body Material

Hard-Anodized Aluminum

Warranty

7 Years, Limited






STANDARD EQUIPMENT: WHAT’S IN THE BOX

1

Fusion Unit

2

Rubber Eyecup (Attached) + Spare

3

Front Lenses Protective Cover (Attached)

4

Hand Strap (for hand-held application)

5

Neck Cord

6

Quick Swap Battery Containers

7

USB Power Cable

8

Video-Out Cable

9

Soft Carrying Pouch

10

User Manual

11

7-Year Warranty with Activation Form

12

Waterproof Hard Carrying Case

13

Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)

* Batteries not included






OPTIONAL EQUIPMENT

A

Universal Remote Control Unit TRC-120 (Comes with connection cable)

B

Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)

C

Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)

D

External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)

E

Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)

F

Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading

G

Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)

H

Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included)

I

Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included)

J

Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included)

K

Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT)

L

Clip-On Adapter COA with Rubber Shroud

M

Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available)

N

Long Eyerelief Rubber Eyecup GSCI-EYECUP-LR

O

Tactical Infrared Illuminator IR-250S. Kit Includes IR-250S Unit (850nm), Remote Control, Picatinny Mount
